Made by Euroflansch

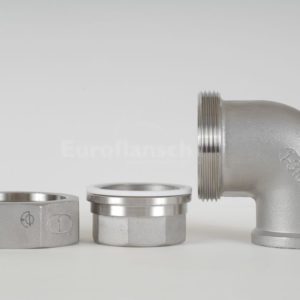

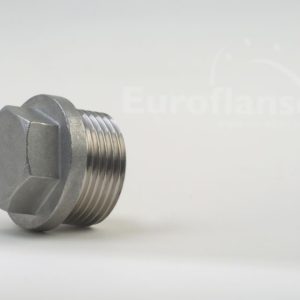

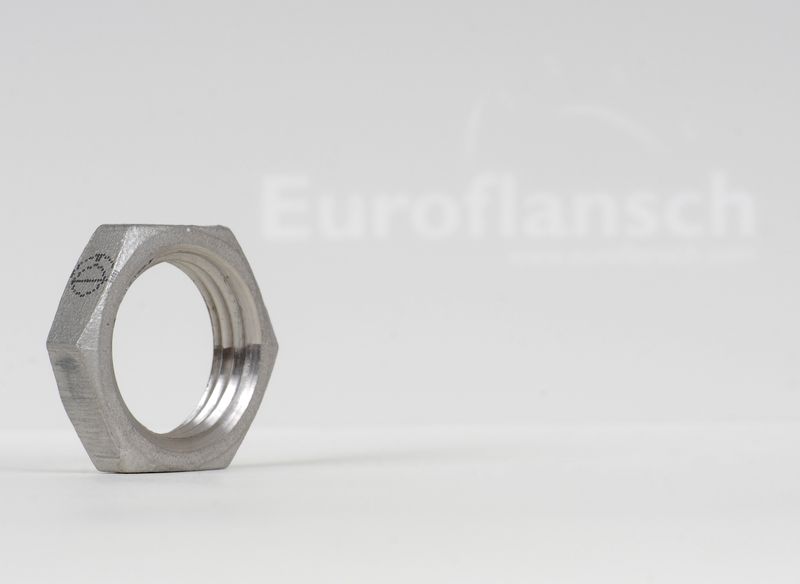

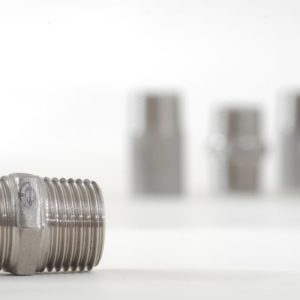

Abbildungen Gewindefittings beispielhaft, andere Ausführungen oder Abmessungen auf Anfrage.
| Standard | ISO4144 | |
| Abmessung | SW | H |
| 1/8″ | 15 | 5 |
| 1/4″ | 18 | 6 |
| 3/8″ | 22 | 6 |
| 1/2″ | 27 | 7 |
| 3/4″ | 32 | 7 |
| 1″ | 40 | 9 |
| 1 1/4″ | 48 | 11 |
| 1 1/2″ | 55 | 11 |
| 2″ | 68 | 13 |
| 2 1/2″ | 85 | 15 |
| 3″ | 100 | 17 |
| 4″ | 125 | 20 |
| Standard | EN-10241 | |
| Abmessung | SW | H |
| 1/8″ | 14 | 6 |
| 1/4″ | 23 | 7 |
| 3/8″ | 26 | 8 |
| 1/2″ | 31 | 10 |
| 3/4″ | 37 | 11 |
| 1″ | 46 | 10 |
| 1 1/4″ | 55 | 11 |
| 1 1/2″ | 63 | 12 |
| 2″ | 76 | 13 |
| 2 1/2″ | 92 | 15 |
| 3″ | 109 | 17 |
| 4″ | 132 | 20 |
Abbildungen Gewindefittings beispielhaft, andere Ausführungen oder Abmessungen auf Anfrage.
| Standard | ISO4144 | |
| Abmessung | SW | H |
| 1/8″ | 15 | 5 |
| 1/4″ | 18 | 6 |
| 3/8″ | 22 | 6 |
| 1/2″ | 27 | 7 |
| 3/4″ | 32 | 7 |
| 1″ | 40 | 9 |
| 1 1/4″ | 48 | 11 |
| 1 1/2″ | 55 | 11 |
| 2″ | 68 | 13 |
| 2 1/2″ | 85 | 15 |
| 3″ | 100 | 17 |
| 4″ | 125 | 20 |
| Standard | EN-10241 | |
| Abmessung | SW | H |
| 1/8″ | 14 | 6 |
| 1/4″ | 23 | 7 |
| 3/8″ | 26 | 8 |
| 1/2″ | 31 | 10 |
| 3/4″ | 37 | 11 |
| 1″ | 46 | 10 |
| 1 1/4″ | 55 | 11 |
| 1 1/2″ | 63 | 12 |
| 2″ | 76 | 13 |
| 2 1/2″ | 92 | 15 |
| 3″ | 109 | 17 |
| 4″ | 132 | 20 |
